Features
- Open-transition transfer switches are designed to operate with Generac's digital control on air-cooled generators
- The Nexus and Evolution controllers used on liquid-cooled generators from 22 to 150kW
What's in The Box

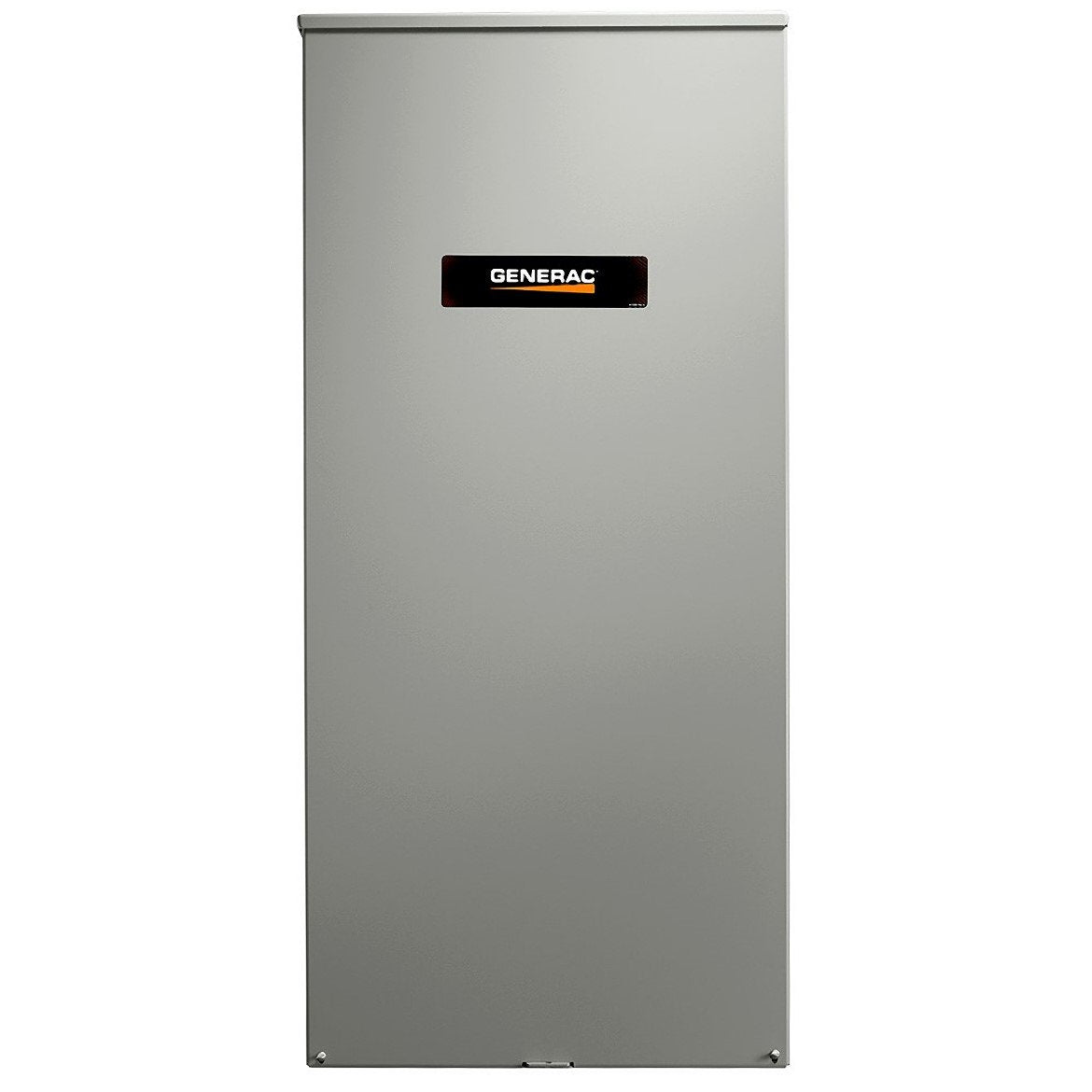

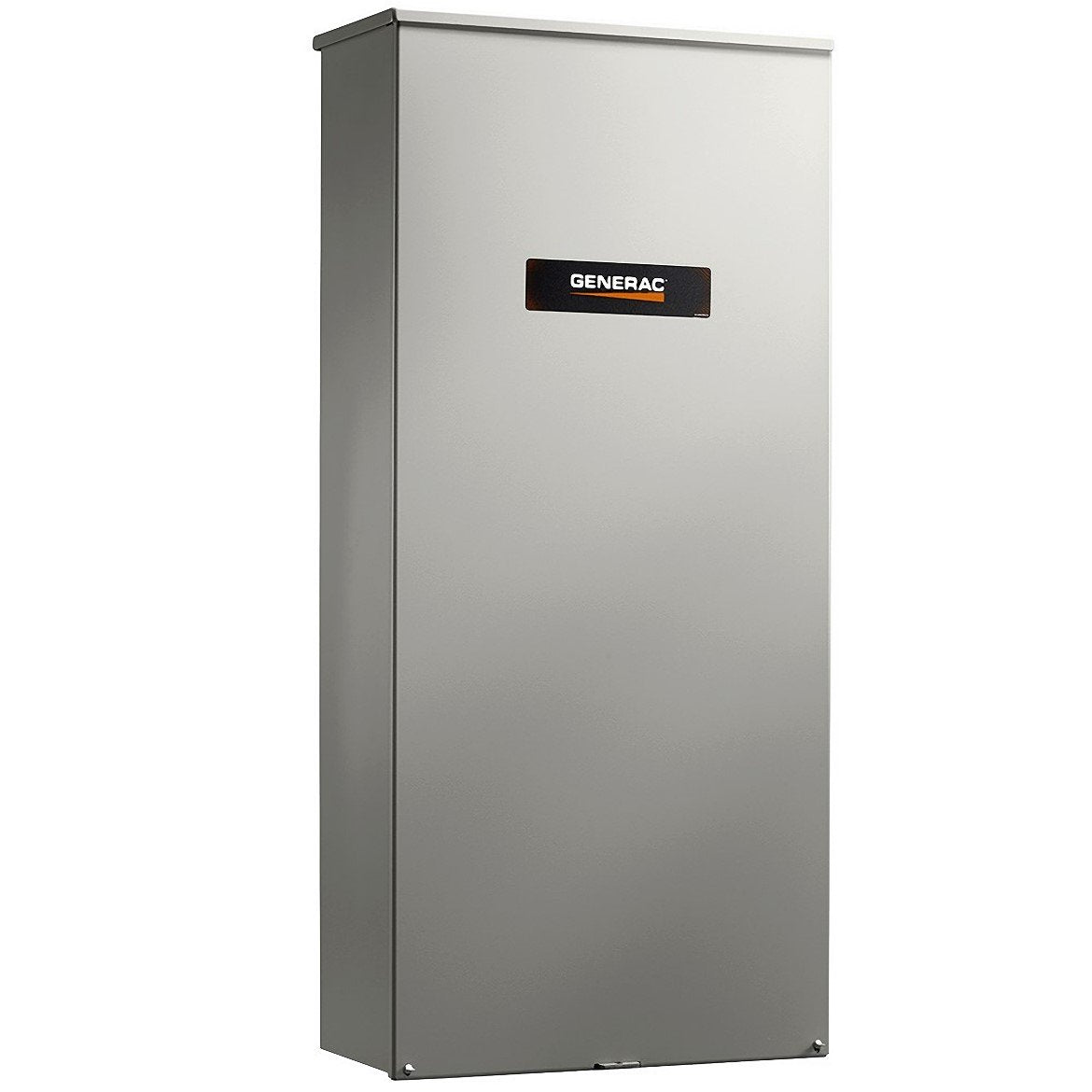

- 120/240-Volt 20,000-Watt 100-Amp Automatic Transfer Switch - RTSW100J3
- Owner's Manual
Warranty
- 1-Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| Model | RTSW100J3 |
| Brand | Generac |
| Max. Wattage | 20,000 |
| Max. Amps | 100 |
| Voltage | 240 |
| Max. Wire Size | 2/0 - 14 AWG |
| Automatic Exerciser | No |
| Enclosure Material | Aluminum |
| Time Delay Transfer | Yes |
| Sensing Line Failure | .9 |
| Max. Number of Tandem Breakers | 0 |
| Repeat of Exercise Cycle | 7 |
| Lockable | No |
| 2-Wire Start | No |
| Manual Override | Yes |
| Sensing Generator Hz | No |
| Phase | 3 |
| Enclosure Type | NEMA 3R |
